Description

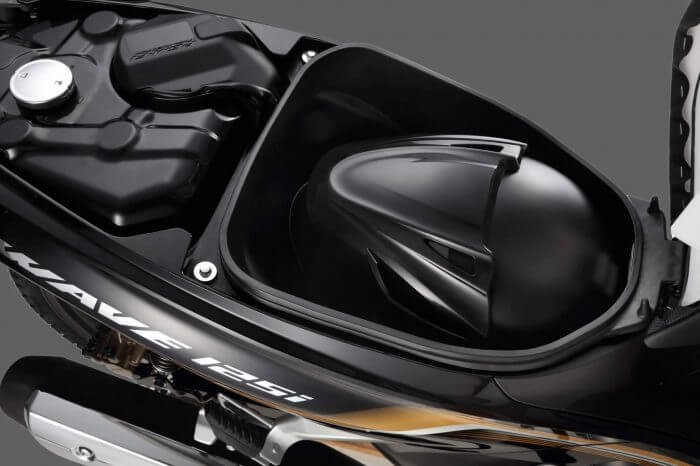

Large 18ℓ U-Chamber

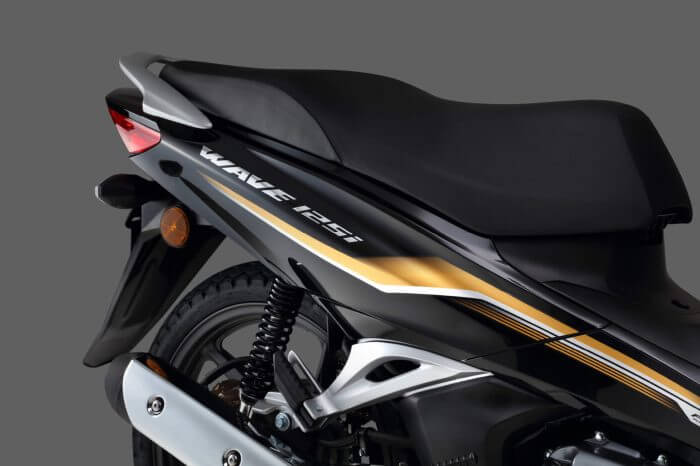

New Graphics

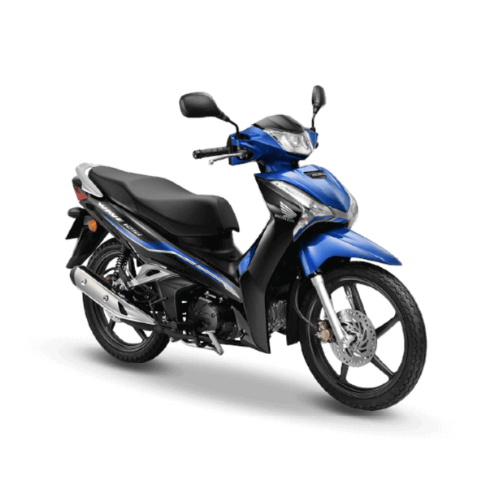

The unique tunes clearly highlight the distinctive identity of the Wave 125i with modern graphic patterns that are sure to impress.

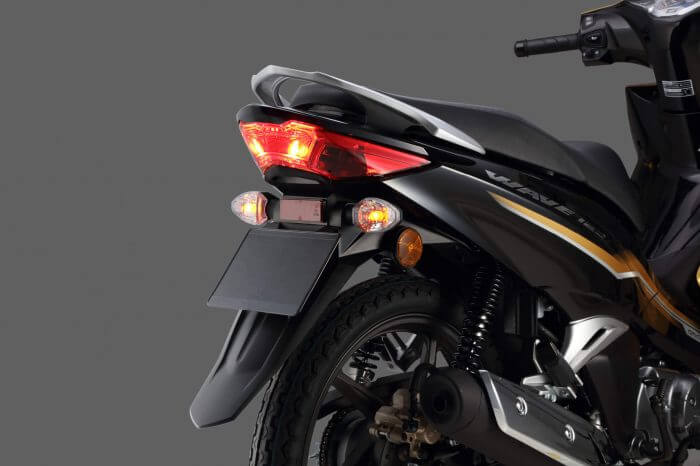

New Design Backlight
Sophisticated new taillight and signal light design.

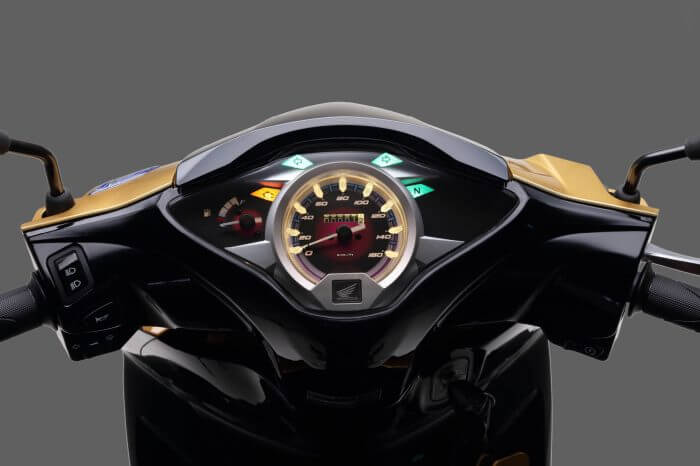

Premium Meter Panel
The latest style blends with strategic layout and bright lighting, easy to read at a glance whether day or night.

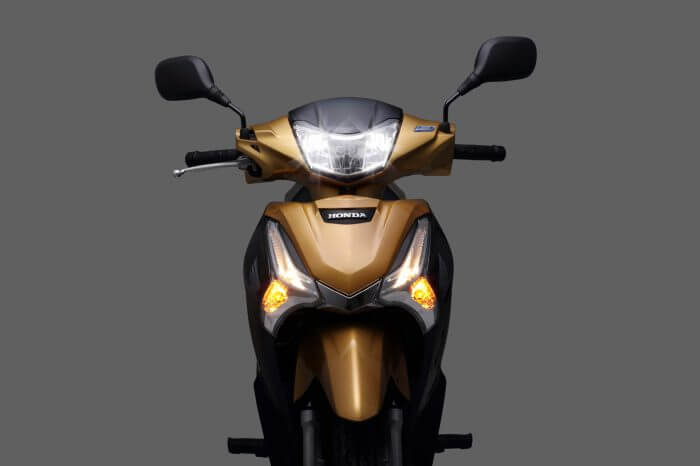

LED Headlights
Stylish and modern LED headlight design to illuminate your drive.

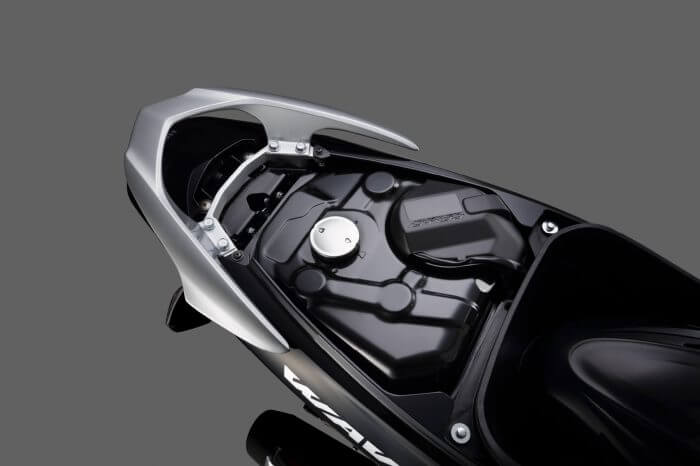

5.4 ℓ Oil Tank
Larger fuel loads coupled with the advanced PGM-FI system and proven fuel efficiency, you are able to explore further without having to stop frequently to refuel.
Specifications
Engine
Type : Single Cylinder, Air Cooled, SOHC 4-Stroke 2 Valve
Displacement : 124.9 cm3
Bore x Stroke : 52.4 mm x 57.9 mm
Engine Output : 6.8 kW@7500 rpm
Torque : 10.1 Nm@ 5500 rpm
Fuel System : Fuel Injection
Starter System : Kick Starter with Electric Auto Start
Transmission
Constant mesh, 4 speeds
Chassis
Suspension Front : Telescopic Fork
Suspension Rear : Swing arm with Double Suspension
Brake Front : Hydraulic Single Disc
Brake Rear : Hydraulic Single Disc
Tire Size Front : 70/90 – 17M/C (38P) (Tubeless)
Tire Size Rear : 80/90 – 17M/C (50P) (Tubeless)
Fuel Tank Capacity : 5.4 L
Battery : 12V 3AH
Dimensions
Overall length : 1933 mm
Overall width : 712 mm
Overall height : 1093 mm
Wheelbase : 1258 mm
Seat Height : 761 mm
Ground Clearance : 135 mm
Curb mass : 107 kg
