Description

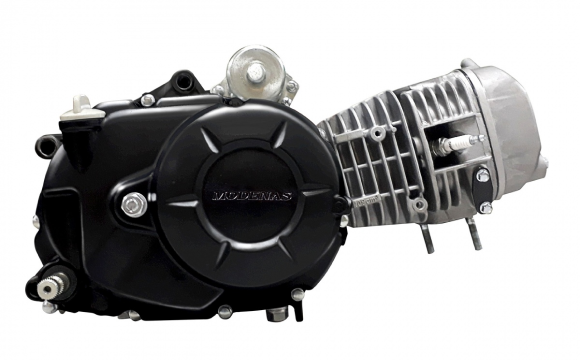

EURO3 STANDARDS
New generation engine with higher power.

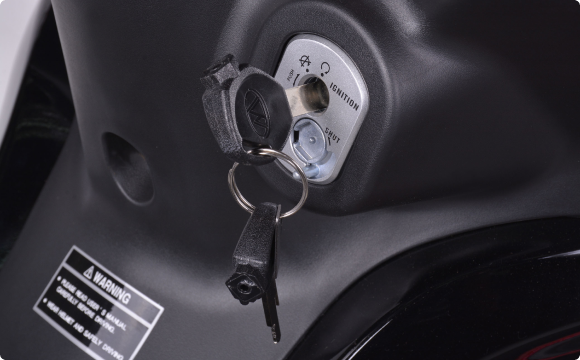

3-IN-1 KEY
Easy ignition system and equipped with anti-theft.
ERGONOMIC RIDE
The seat position, handle and footrest are designed for a comfortable ride.

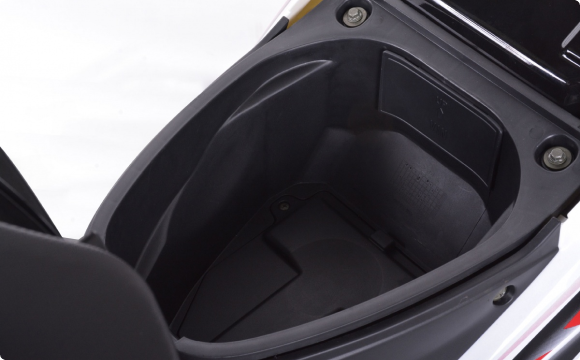

STORAGE COMPARTMENT
Large underseat storage space for rider convenience.

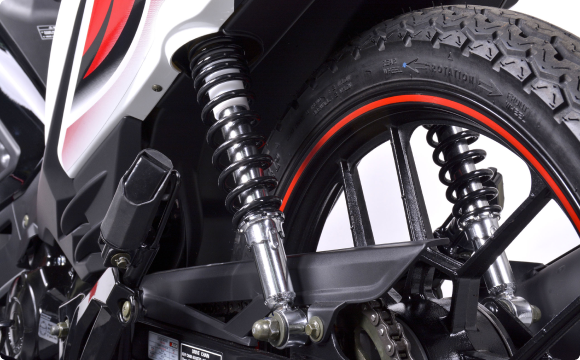

DUAL SHOCK RR ABSORBERS
Absorbs loads better for a more comfortable ride.
Specifications
Engine
Type : 4-stroke SOHC, Single Cylinder
Displacement : 109.2cc
Bore x Stroke : 50 mm x 55.6 mm
Engine Output : 6.2kW
Torque : 8.2 Nm
Fuel System : Carburetor, PZ19
Starter System : Primary Kick & Electric Starter
Transmission
4 Speed, Rotary
Chassis
Suspension Front : Telescopic Fork
Suspension Rear : Trailing Swing arm, Arm Suspension
Brake Front : Disc
Brake Rear : Drum
Tire Size Front : 70/90-17M/C 38P, Tubeless
Tire Size Rear : 80/90-17M/C 44P, Tubeless
Fuel Tank Capacity : 4.2 L
Battery : 12v 6Ah
Dimensions
Overall length : 1900 mm
Overall width : 685 mm
Overall height : 1100 mm
Wheelbase : 1240 mm
Seat Height : 760 mm
Ground Clearance : 145 mm
Curb mass : 94.5 kg
